Alternate Sigma-Delta ADC

Home

        Goto:   Calculations      Output Format        Notes

Definition:

Equation

Parameters

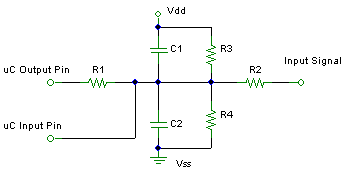

Diagram

Calculate Properties of a 1-bit ΣΔ ADC:              top

Parameter

Value

Units

Note

Inputs:

R1 (feedback resistor)
R2 (input resistor)
  R3 (pull-up resistor)
  R4 (pull-down resistor)
FClk (uC clock frequency)
N (#bits in sample)
  Vdd (uC supply)


Outputs:

VMax (max. input voltage)

VMin (min. input voltage)

  VRange  (|VMax-VMin|)   =Vdd*R2/R1
  TS (sample period)
  FS (sample rate)
  FN (sample Nyquist freq.)




Output Format:                                                        top

Select Format: Scientific Engineering Fixed

Notes:                                                                       top

bullet

This calculator is for the case of a microcontroller (uC) digitizing an analog signal using the 1-bit Sigma-Delta (ΣΔ) approach.

bullet

You must keep C1=C2 when uC input threshold is at Vdd/2.

Copyright ©2007  Raymond J. Allen
